The cells are for testing specimens measuring 38mm diameter x 76mm long and 50mm diameter x 100mm long. The Triaxial Cell consists of a perspex (acrylic plastic) chamber with an anvil and a loading plunger. Releasing four tie rods easily splits the cell. It is leakproof up to 10 bar (10kg/cm) fluid pressure. Cells that withstand pressures of 20 bar can be made on request.
An oil plug and air vent are provided for introducing a thin layer of oil over water. This provides an effective sealing at the plunger for long duration tests. The cell is also fitted with four ball valves of no-volume change type, at the base.

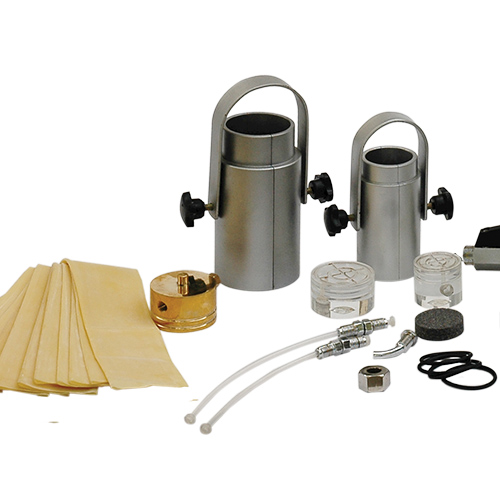

SUPPLIED AS STANDARD

38mm Triaxial Cells

  • TO-07501 Top loading pad, perspex, 38mm diameter
  • TO-07502 Plain perspex disc 38mm diameter x 6mm thick
  • TO-07503 Porous stone 38mm diameter x 6mm thick
  • TO-07504 Sheath stretcher for 38mm diameter specimen
  • TO-07505 Sand former for 38mm diameter (1 qty)

    • OPTIONAL ACCESSORIES

  • TO-07501 Top loading pad, perspex, 38mm diameter
  • TO-07502 Plain perspex disc, 38mm diameter x 6mm thick
  • TO-07503 Porous stone, 38mm diameter x 6mm thick
  • TO-07504 Sheath stretcher for 38mm diameter specimen
