Direct Shear Test Apparatus

slider1

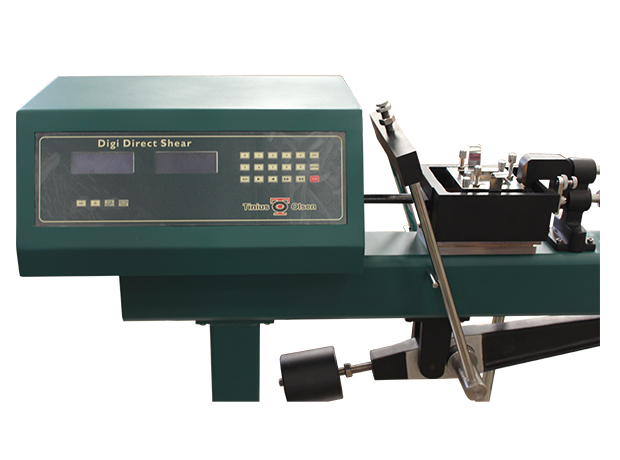

slider2

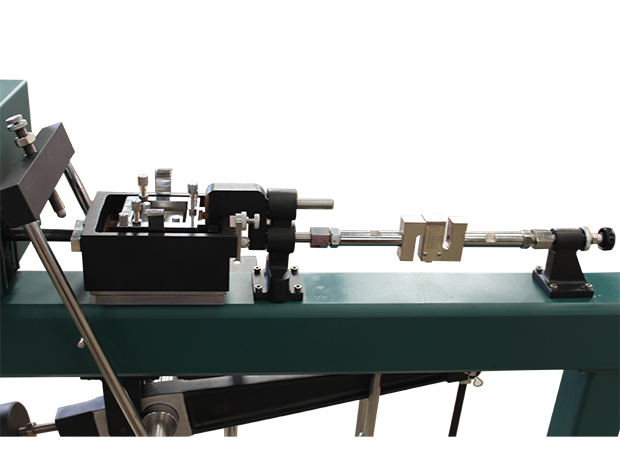

slider3

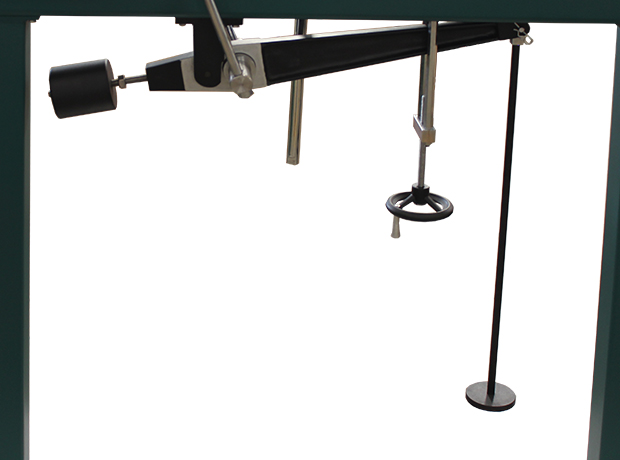

slider4

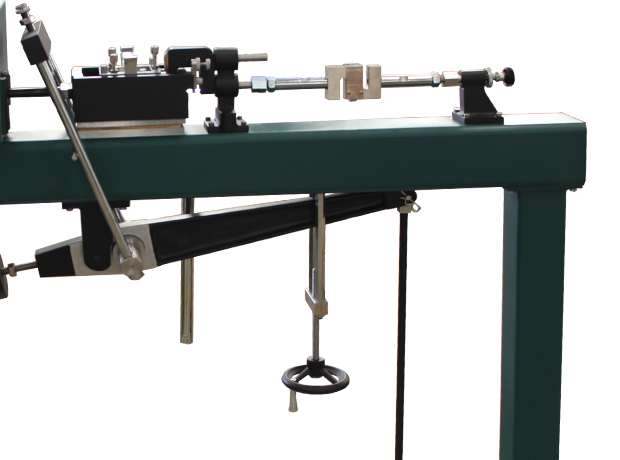

slider5
previous arrow
next arrow

Every building or structure imposes load on the soil supporting the foundation and this develops stress among the soil particles; failure of this stress leads to the sliding of one body of soil relative to the surrounding mass.

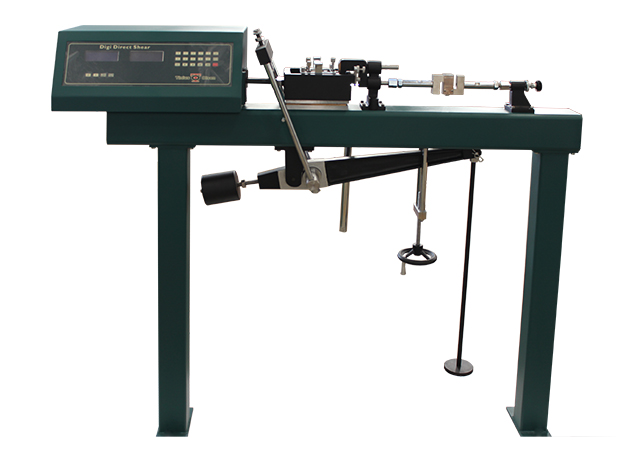

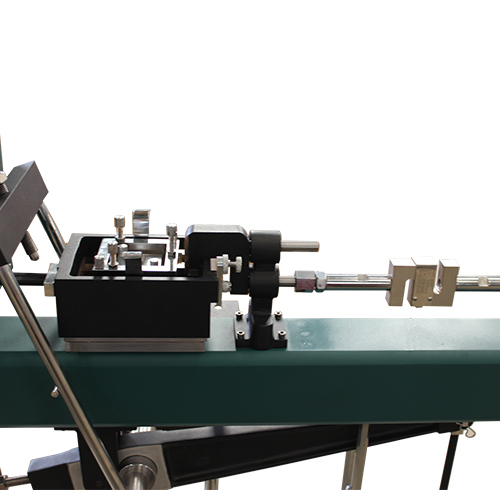

Tinius Olsen’s Direct Shear Test Apparatus is a motorized dead weight testing machine designed for direct and residual shear testing on undisturbed and remolded soil specimens. The machine uses a 10:1 beam loading device to control confining pressures, a load cell with readout to measure shear pressure and a displacement transducer to measure shear and vertical displacement.

Features & Benefits

  • Applicable Standards: BS 1377; EN 1997-2; ASTM D3080
  • Microprocessor control
  • Rapid approach and return to start datum
  • Fully variable speed, up to 9.99mm/min
  • Reduced operator involvement
  • Direct entry through keyboard
  • Direct reading in engineering units
  • Modular transducer system
  • Specifications

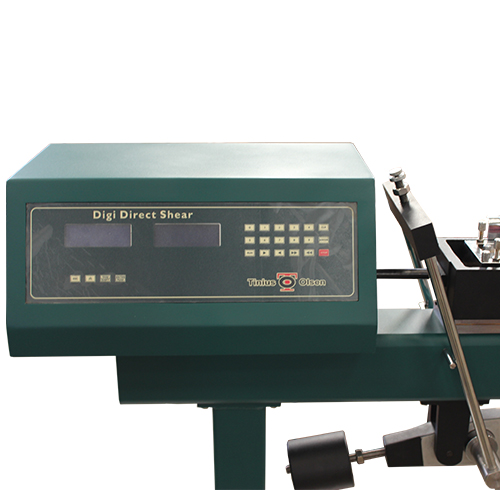

  • Mode of display: Microcontroller multi-line alpha numeric display for all simultaneous channels
  • Capacity: 2kN (200kgf) load cell
  • Range: + 20 mm. LVDT displacement sensor with 3m-long cable
  • Shear measurement: Direct/residual
  • Fast forward/reverse speed: 10mm/min
  • Rates of strain: Up to 9.99mm/minute
  • Specimen size: 60 x 60 x 25mm
