The Consolidation Apparatus consists of a fixed ring type of consolidometer cell for testing specimens of 60mm diameter x 20mm thick, but a variety of specimen sizes from 50-100mm diameter can also be tested. Additionally, the same loading unit can be used with optional floating ring consolidometer cells.

The standard consolidation apparatus is supplied with a weight set to achieve a total pressure of 10kg/cm2 (in addition to the seating load of 0.05kg/cm2 on the specimen), but an additional set of weights is required to reach the full capacity of 20kg/cm2.

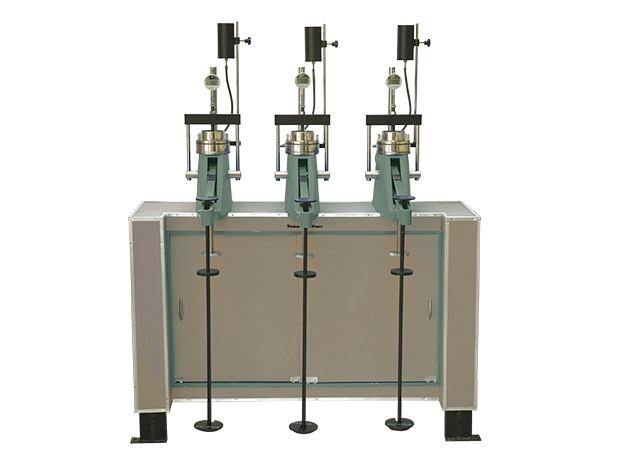

The consolidation is measured by conventional dial gages or digital gages and common configurations include a single and three-gang consolidometers, with a six-gang version available on special request.

Features & Benefits

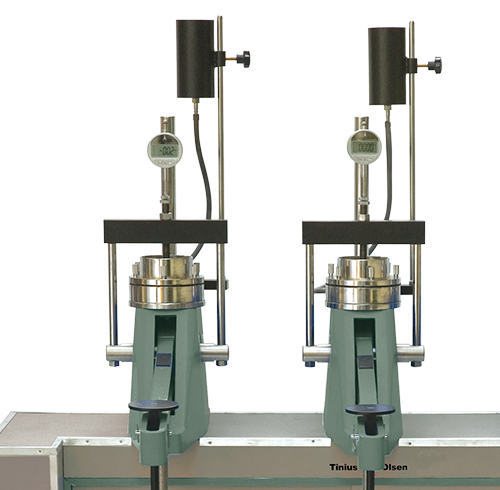

  • Digital readout reduces the possibility of operator error
  • Direct reading in mm
  • Plug-in transducer module system
  • Facility for connecting readout unit to compatible logging or printing system
  • High capacity – 8800kPa on 50mm diameter specimens using 11:1 beam ratio
  • Triple beam ratio, 9:1, 10:1, 11:1
  • Compact unit ensures maximum space saving
  • Applicable Standards: BS 1377; EN 1997-2; ASTM D2435, D4546; AASHTO T216
  • Standard & Optional Accessories

    Supplied as standard:

  • TO-12501 Consolidation Unit
  • TO-12502 Cell assembly complete with all accessories suitable for 60mm diameter x 20mm thick specimens
  • TO-12503 Set of 29 weights to generate 10kg/cm2 stress on 60mm diameter specimen
  • TO-12504 Water reservoir with tube, T connection and pinchcock
  •
    Optional accessories:

  • TO-12502 Cell assembly complete with all accessories suitable for 60mm diameter x 20mm thick specimens
  • TO-12503 Set of 29 weights to generate 10kg/cm2 stress on 60mm diameter specimen
  • TO-12504 Water reservoir with tube, T connection and pinchcock
  • TO-070 Dial gage, 5mm x 0.002mm
  • TO-12801 Digital displacement sensor, 0-10mm
  • TO-12802 Digital indicator for single channel
  • TO-13001 Digital indicator for three channels
