Automatic Soil Compactor

slider1
slider2
previous arrow
next arrow

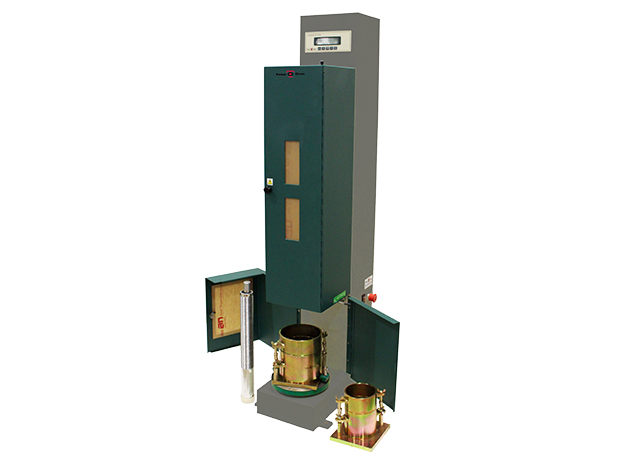

The effort required to prepare specimens for compaction studies can be costly and time consuming. The Tinius Olsen Compactor automatically compacts soil specimens, eliminating the effort of hand compaction.

The height and weight of the hammer is adjustable to suit test requirements. An automatic blow pattern ensures optimum compaction for each layer of soil. The hammer itself travels across the mold and the table rotates the mold in equal steps on an extremely stable base. The number of blows per layer can be set at the beginning of the test by means of the simple digital counter system.

Applicable Standards: BS1377, EN 1997-2, 1924; ASTM D558, D560, D698, D1557; AASHTO T99, T134, T135, T136, T180.

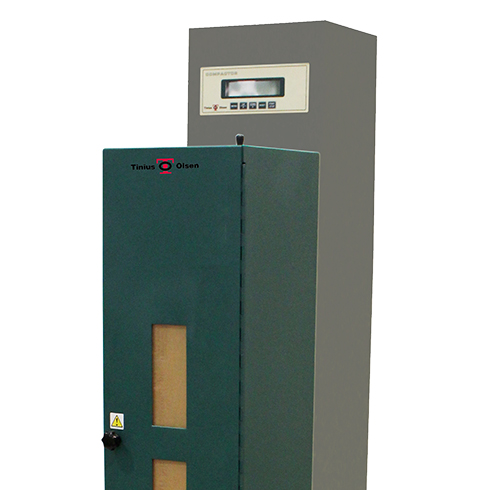

Features & Benefits

  • Pre-set blow pattern ensures even compaction
  • Solid state controls for reliability and ease of maintenance
  • Automatic counter reset after completion of blow pattern

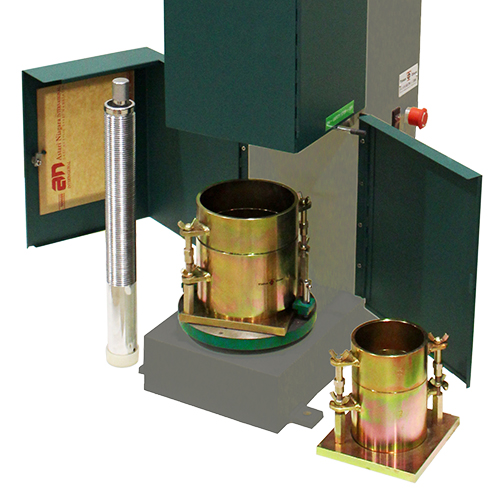

  • Options & Accessories

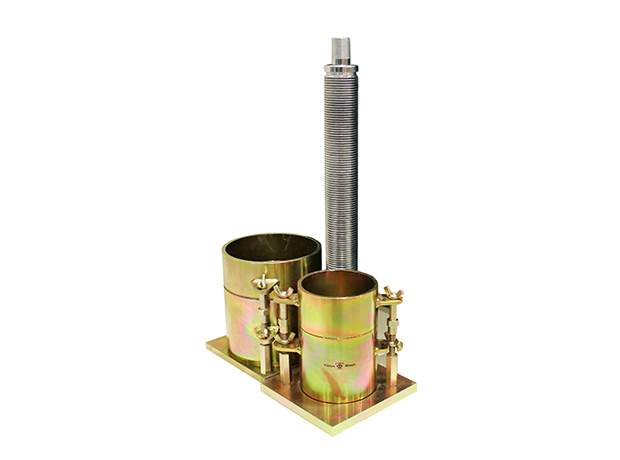

  • TO-11201 Proctor compaction mold for light compaction – 105mm ID x 115.5mm high
  • TO-11201-H Compaction mold for heavy compaction – 152mm ID x 127mm high
  • TO-11301 Compaction mold for light compaction – 101.6mm ID x 116.4mm high
  • TO-11301-H Compaction mold for heavy compaction – 152mm ID x 116.4mm high
  • TO-11201-AS Light compaction mold – 400 x 600mm
  • TO-11201-H-AS Heavy compaction mold – 400 x 600mm
