Tinius Olsen
HMC2.0

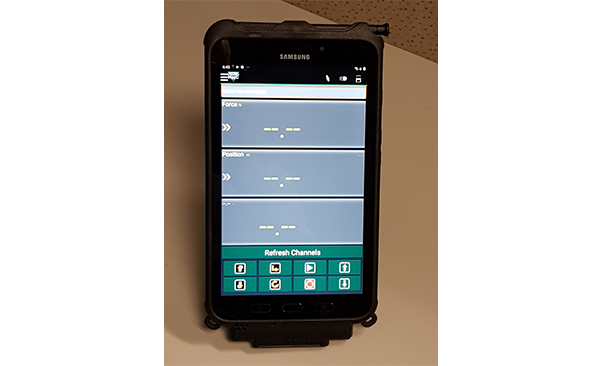

Wireless handheld interface that is connected to the machine by a Bluetooth link.
This interface can be used on both the ST and SL series of testers. It features an Android-based operating platform and can be used to control the machine by itself or in conjunction with Tinius Olsen’s Horizon software.
Features & Benefits
- Bluetooth-enabled handheld interface allows maximum flexibility when paired to a testing machine.
- Typical battery life is approximately 11 hours of continuous use.
- Three-channel display of test machine channels.
- Selectable multi-unit display of channel values.
- Safe operating radius of a maximum 10m. If range is exceeded for testing, the machine will operate in ‘safe’ mode.

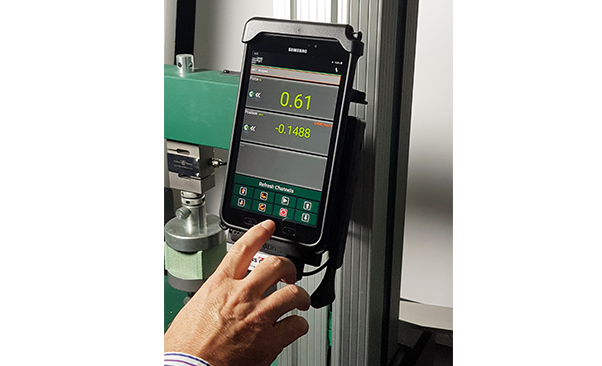

- Controls machine movement during test set-up and initiates a test directly from application.
- Instantaneous display of machine status and channel values.
- Test procedure involving up to five steps can be set up and run directly on the HMC2.0 interface. These steps include move, hold and cycle routines.
- WiFi enabled to be part of local network.
- Test results can be sent directly to a WiFi enabled printer or connected to a PC via USB-A/USB-C connection.
- 8MP AF back and 5MP front camera are built into the interface and can be used to take pictures of specimens, tests and configurations as witness to each test.
- Interface has Full HD 1080p video at 30fps capability to record test procedure.
- Stylus is included with the interface.
Specifications
- Compatible with: ST & SL series and most other TO frames
- Color: Yes
- Operating system: Android 7.1
- Processor: 1.6GHz, Octa-core
- Memory (RAM): 3GB
- Memory (Internal/External): 16GB 9/MicroSD (upto 256GB)10
- Display/Display type: Screen size 8.0in/TFT
- Display resolution: WXGA (1280 x 800)
- Brightness: 480 nits
- Camera (back/front): 8MP auto focus with LED flash/5.0MP
- Video recording resolution: FHD (1920 x 1080) @360fps
- Video playing resolution: FHD (1920 x 1080) @360fps
- USB port: USB 2.0 Type-C
- Battery capacity: 4,450mAh, user-replaceable battery
- Battery life: Up to 11 hours
- WiFi: 802.11 a/b/g/n/ac
- Stylus: Integrated S pen (water and dust resistant, IP68 rated)
- Charging time: 160min
- Dimensions: 127.6 x 214.7 x 9.9mm
- Weight: 415g
