HT24 Dumbbell Grips

Slide1
Slide2
Slide3
previous arrow
next arrow
Slide1
Slide2
Slide3
previous arrow
next arrow

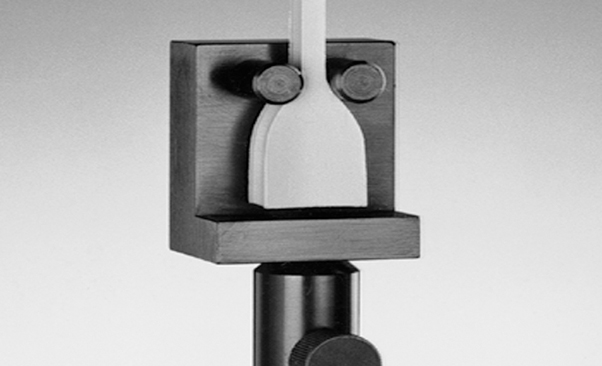

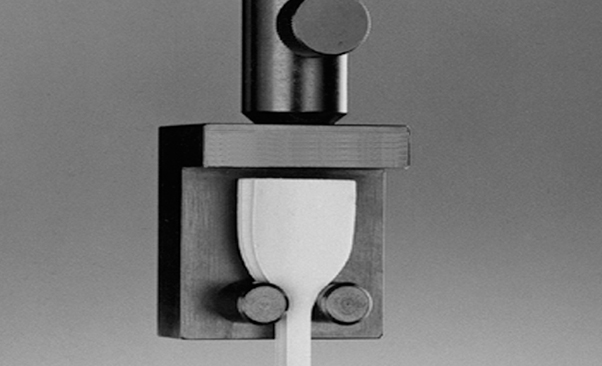

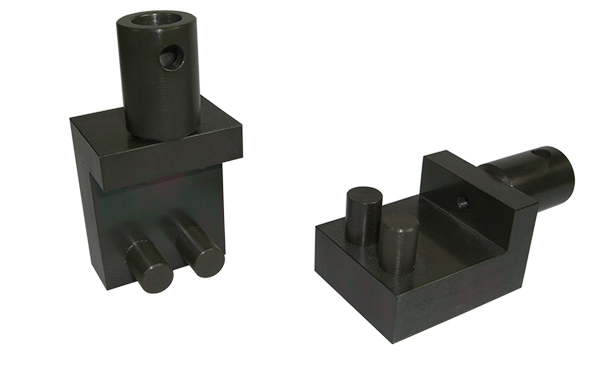

The HT24 Dumbbell Grip is designed for holding thick rigid dumbbells. The curved shoulder of the dumbbell is located between two bollards. With no clamping necessary, specimens can be loaded into the grip very quickly.



This low force tensile grip is used on ST series materials testing machines.



Specifications

  • Item# : 99-024-0000
  • Maximum capacity: 10kN/2,000lbf
  • Minimum loadcell: 50N/1,000lbf
  • Gripping length: See Note*
  • Maximum specimen Width: See Note*
  • Maximum specimen Thickness: 16mm/0.63in
  • Length each: 110mm/4.3in
  • Weight each: 800g/1.7lb
  • Temperature Limits: -30-70°C

    • * Note: Dumbbell conforms to ASTM D638 type iv, BS2782 Part 3 Method 320A Fig 1, and DIN53455 No 4 Fig 3

    Applications

  • Rigid polymer dumbbells typically cut from a section of gas and water pipe
    • Download Brochure
    • Request a Quote
