Grip 67-N-91

Slide1
Slide2
Slide3
Slide4
previous arrow
next arrow
Slide1
Slide2
Slide3
Slide4
previous arrow
next arrow

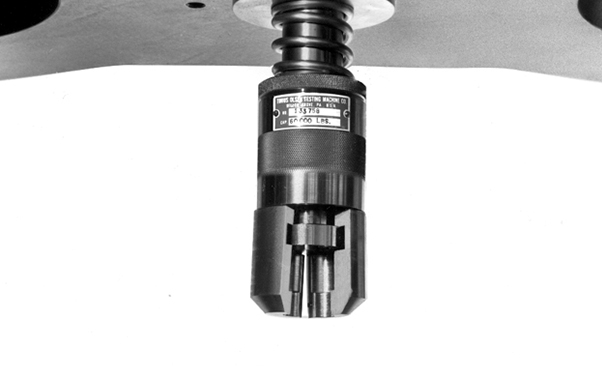

Used for rapid testing standard headed specimens in accordance with ASTM E8, A370 and B557. The sample is inserted into the two pairs of split sockets and the outer clamping ring slides down over them to lock the sample in place.



The suspended tensile grips are used on ST and SL series materials testing machines.



Specifications

For testing 0.505in specimens

  • Maximum force: 200kN/40,000lbf
  • Length each: 40mm/1.6in
  • Weight each: 150g/0.33lb

    •
    For testing 0.357in specimens

  • Maximum force: 100kN/20,000lbf
  • Length each: 40mm/1.6in
  • Weight each: 150g/0.33lb

    •
    For testing 0.252in specimens

  • Maximum force: 50kN/10,000lbf
  • Length each: 40mm/1.6in
  • Weight each: 150g/0.33lb

    •

    Applications

  • Metals
  • Other high strength materials
