V-notched Rail Shear Test

Slide1
Slide2
Slide3
previous arrow
next arrow
Slide1
Slide2
Slide3
previous arrow
next arrow

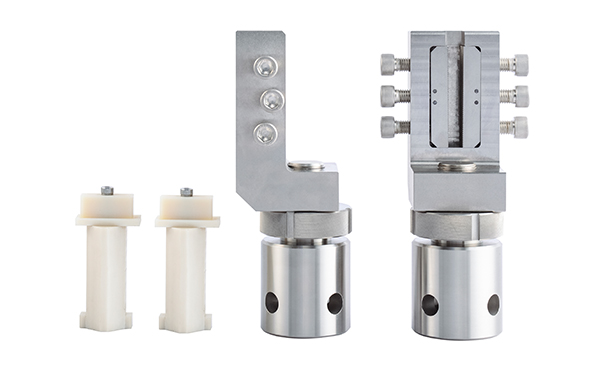

Two rail fixture enables a shear forces to be introduced onto the test specimen faces. Each half of the fixture consists of two gripping plates and includes alignment spacers.



Compatible with Tinius Olsen ST series of materials testing machines.



Specifications

  • Item #: CA-001-0003
  • Maximum capacity: 45kN/10,000lb
  • Minimum loadcell: 10kN
  • Contact faces: Thermal spray coating
  • Construction: Stainless steel
  • Mounting interface: Tinius Olsen quick change with backlash elimination lock
  • Dimensions (LxWxD): 240 x 120 x 88mm*
  • Weight: 10kg lower attachment; 7.8kg upper attachment
  • Temperature range: -70-350°C. Options available for wider range
  • Applicable Standards: ASTM D7078

    • *Note: When fixtures are aligned for use, the overall length together is 370mm


    Applications

  • Composites
