Tinius Olsen

HW20 Wedge Grips

Slide1
Slide4
Slide3
previous arrow
next arrow
Slide1
Slide4
Slide3
previous arrow
next arrow

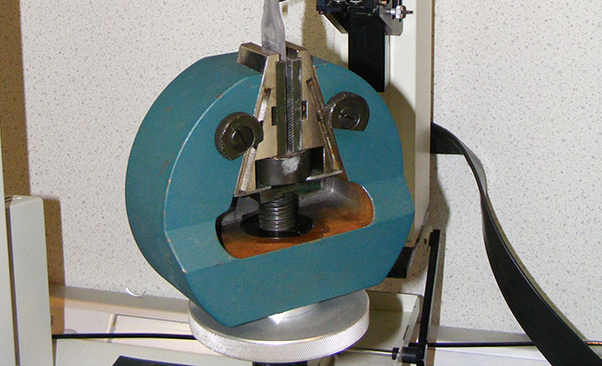

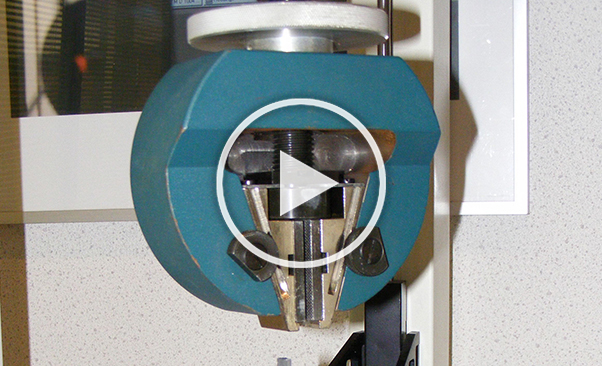

Self-tightening wedge grips. Wedges remain stationary when applying initial gripping force on the sample via the handwheel, so avoiding excessive compression of the sample prior to test. Grips are supplied with cross-hatched jaw faces for gripping flat samples. Optional V profile wedges are available for gripping round sections up to 15mm (6/10in).



The wedge style tensile grip is used on ST series materials testing machines.



Specifications

  • Maximum capacity: 25kN/5,000lbf
  • Minimum loadcell: 500N/100lbf
  • Gripping length: 50mm/2in
  • Maximum sample width: 30mm/1.2in
  • Maximum sample thickness: 15mm/0.6in
  • Length each: 210mm/8.3in
  • Weight each: 6.3kg/14lbf
  • Temperature limits: -40-100°C

    •
    V profile jaw face options

  • HW20R5 3-5mm/0.12-0.2in diameter
  • HW20R8 4-8mm/0.15-0.31in diameter
  • HW20R10 5-10mm/0.2-0.4in diameter
  • HW20R15 8-15mm/0.31-0.6in diameter

    •

    Applications

    Suitable for gripping high strength rigid material in parallel or dumbbell form. Ideally the overall sample length should be greater than 150mm (6in).

    • Download Brochure
    • Request a Quote
