Tinius Olsen

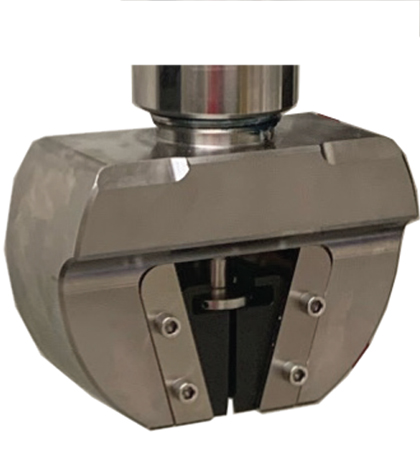

CA-1-21 Tensile wedge grip, 50kN

slider1

slider1

slider1

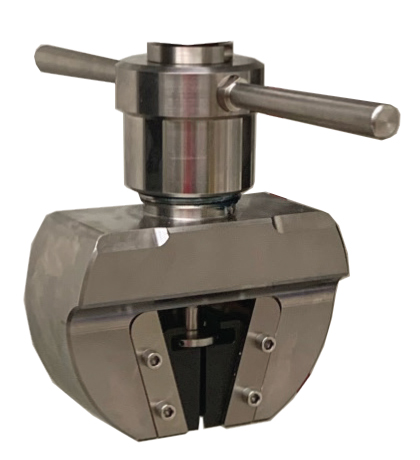

Capstan manual closing wedge grip. Wedge action provides continuous gripping pressure throughout the
tensile test.

Compatible
Tinius Olsen ST series
of materials testing
systems
Applications
Metal, alloys and rigid
plastic
Specifications

Maximum capacity: 50kN / 10,000lbf
Minimum Load cell: 1kN / 250lbf
Construction: Stainless steel body & hardened steel contact faces
Mounting Interface: Platen to platen – 3/4″ I/F
Insert dimensions: Approx. 55mm deep by 40mm wide
