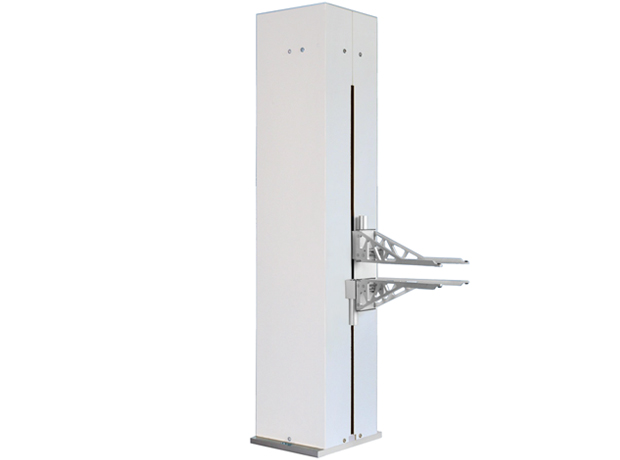

Long travel automatic gauge length extensometer

Application : The extensometer AEX500 is suitable for almost all samples of a gauge length (Le) from 10 mm. Because of its rugged construction and high accuracy the AEX500 nearly meets all applications in measurement of linear strain (determination of the E-modulus up to sample fracture). It works without restrictions in both the upper as well as the lower test area.

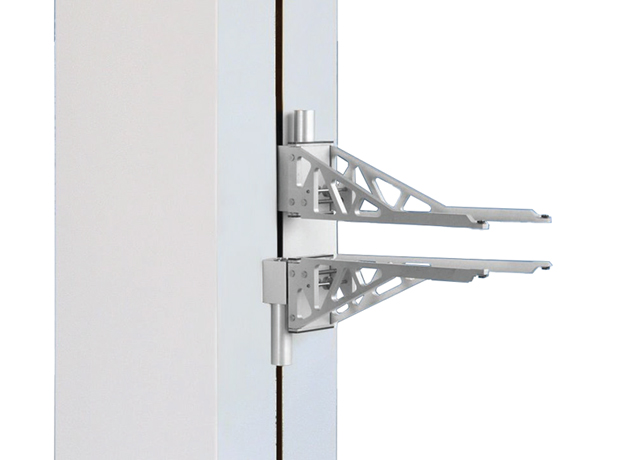

Design and function : The AEX500 has a smooth running and nearly frictionless linear guidance of the measuring heads. Due to the non-contact incremental gauge the AEX meets all requirements of class 0.5 (EN ISO 9513) over the whole travel. The measuring heads may easily and quickly be removed from the device by unlocking two screws with pin guidance. As an option also version with measuring arms for a climatic chamber is available (up to 350 C).

Compatible with Tinius Olsen ST and SL series of materials testing systems

Download User Instruction Manual
Please Fill the Fields to download pdf
First Name*

Last Name*

Company Name*

Job Title*

Your email*

Phone Number*

Equipment, Interested In*

Industry*

Street

Country*

State*

City*
Zip Code

How can we help?

By ticking this box I agree, in accordance with the General Data Protection Regulation (GDPR) 2018, to my personal data being stored and used by Tinius Olsen. Typically, information may be used; to identify and communicate with you, for commercial activities (including newsletters) or for marketing and business updates.
Download Brochure
Request a Proposal
Request a Quote

FEATURES & BENEFITS

Accuracy class 0.5 (EN ISO 9513)

Resolution max. 0.01μm (1 Vpp) or 0.05μm (RS422/TTL)

Gauge length from 10 mm

Automatic movement to the position and initial gauge length

Automatic attachment to the specimen

Measuring travel 500mm minus gauge length

Operating range in upper and lower testing space possible

SPECIFICATIONS

Accuracy class EN ISO 9513 : 0.5
Indication error (rel.)* : 0.5%
Indication error* : 1.5μm
Error in gauge length (Le) : ± 0.5%
Gauge length (Le) : 10 to 500mm minus travel
Activating force : max. 10cN
Clamping force : 50-100 cN
Operating temperature range : 0-50°C
Weight : approx. 30kg
